Ben was able to make rapid on-the-go paddock route changes in Launch Pad via USB transfer to both CLAAS headers’ Trimble systems.

Verge Ag – Launch Pad Case Study

On-farm operations optimisation – GRDC Grain Automate Project

Author: Kate Witham, Farmanco

Key Messages

Optimised paddock planning for new paddocks: Verge Ag’s Launch Pad generated GPS guidance runlines and redesigned layouts for Controlled Traffic Farming (CTF), including incorporation of 15° deep-ripping offsets.
Consistency across farms: Across 133 paddocks spanning five locations in Western Australia’s Great Southern region, Launch Pad standardised CTF lines using edge alignment and optimised headings. The platform accommodated diverse paddock layouts, two guidance systems, and four machinery widths.
Vision for autonomy: Launch Pad delivers many efficiencies associated with autonomous equipment, including full-route planning and standardised execution, using existing autosteer and guidance systems. This reduces reliance on expensive OEM autonomy unlocks or capital investment in new autonomous machinery.

Background

Launch Pad, developed by Verge Ag, is a web-based precision agriculture platform that enables growers to create optimised machinery path plans. Its objective is to reduce fuel use, working time and environmental impact while improving operational consistency. The software generates GPS-compatible routes based on paddock boundaries, machinery specifications and operational goals. It plans the most effective way for equipment to move across a paddock, reducing in-cab decision-making and improving overall productivity. When combined with autosteer and high-accuracy guidance systems, Launch Pad enables supervised autonomy, where operators focus on monitoring rather than steering.

Another application for Verge Launch Pad is creating and using common runlines for Controlled Traffic Farming (CTF). CTF is a system that incorporates permanent wheel tracks used by machinery across all operations (where possible) throughout the season. In CTF systems, a master runline is established as the starting point in the paddock, and all subsequent operations are based on this line. By matching the operating width and track spacing of all cropping machinery, compaction is confined to designated wheel tracks—also referred to as tramlines—within the paddock.

When establishing new runlines for CTF, there are many factors to consider to ensure future operations are time-efficient, with reduced overlap or missed areas, the least number of tracks and turns, and minimal adverse effects on soil health, such as erosion risk and compaction. Small inefficiencies in design can accumulate over time, resulting in significant losses in time and profitability. This is why planning and comparing options for each unique paddock can be not only difficult but also time-consuming—especially without assistance from programs such as Launch Pad, which simplifies this process by generating and managing common runlines and optimising layouts for efficiency and sustainability.

Case study snapshot

Person: Ben Slater, Strathaven Farm manager
Farm: Nymann Strathaven (Fig. 1)
Location: Great Southern Region, Western Australia
Area: 12000+ ha. Cropping area: 9800+ ha
Crops: Canola, wheat, barley, lupins
Equipment: Fendt tractors, Agrifac sprayers, JTA trailing sprayers, Sonic Boomsprays, CLAAS harvesters
Machinery guidance: Fendt and Trimble
Machinery Widths: 12, 24, 36, and 48 m

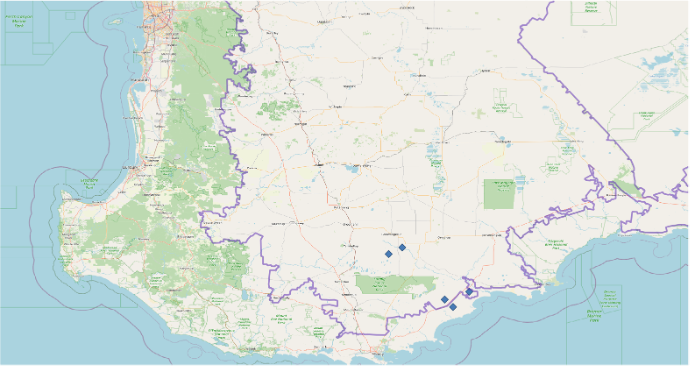

Fig. 1. The five locations of Nymann Strathaven farms (blue dots) in the Great Southern Region of Western Australia. Purple outline indicates wheatbelt border.

The Challenge

For Ben, the farm manager at Strathaven who manages multiple people and planning operations across variable environments, the overarching priority is to increase efficiency and standardise paths across both established and newly acquired paddocks.
After doubling the farm’s land base, several challenges were identified with the integration of new paddocks:

Newly obtained paddocks required common runlines to be created for CTF
New paddocks were smaller and often had more complex layouts/shapes compared to existing paddocks closer to Gnowangerup (Fig. 2).
Designing efficient run lines required factoring in multiple machinery types and widths and two guidance systems (Fendt and Trimble) for use across varied operations and staff backgrounds.
Deep ripping planning across existing and new paddocks requires a 15°offset from run lines, which also makes the master CTF runlines difficult to see post-ripping.

CTF planning using Launch Pad was particularly important in 2025 for Strathaven Farms. The software simplified the integration of new paddocks with no pre-existing runlines into their existing CTF system and machinery configurations, mitigating potential inefficiencies such as wasted fuel, lost time, and inconsistent operations – issues that could accumulate across future seasons. With multiple staff members, some being their first year of using machinery, it was particularly important to provide clear and efficient route planning.
Launch Pad’s intelligent route planning created optimised run lines for each new paddock based on:

the minimum number of tracks required
the highest amount of track overlap between operations
the minimum distance travelled across the various equipment types and activities.

Deep ripping further complicated operations, as the 15°offset from run lines historically made it difficult to visually track previous paths. Launch Pad simplified this process by incorporating the required angle change into the plan, while still ensuring operators could maintain efficiency in the adjusted path.

While the main farm already had established run lines and larger, more straightforward paddocks, route planning using Launch Pad still increased planning efficiency. The software enabled Ben and his team to plan standardised routes and turns, which could also be easily uploaded to both Fendt and Trimble guidance systems so the machines could follow the route autonomously. Different machinery was also compared in the system to identify differences in operation time requirements and number of shared CTF tracks.

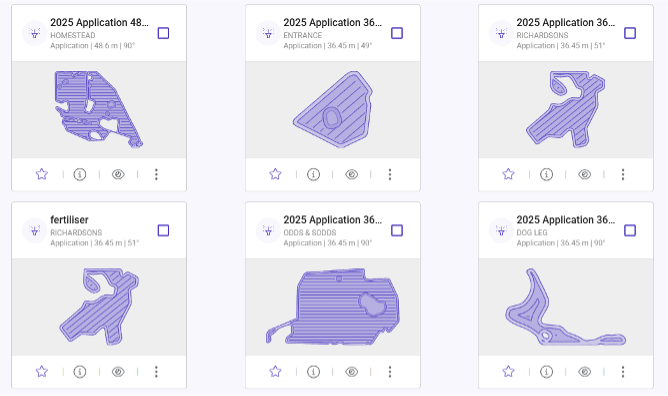

Fig. 2. Examples of complex paddock shapes

Processes and features of Launch Pad

Ben found the process of generating new plans in Launch Pad to be fairly straightforward, with no notable difficulties encountered when transferring them from his laptop to the guidance systems across the different machines.

‘Plan From’ feature

The “Plan From” feature in Launch Pad was useful for Ben where he was comparing different machinery types and widths across both existing and new paddocks. By starting from one operational plan (e.g. seeding) he could use the existing headings and start points to design a secondary activity plan, such as a spray application. This feature allowed Ben to create a seasonal plan (a plan for each operation during the season) which aimed to maximise the number of shared tracks across four machinery widths to minimize the area trafficked, while still providing measurable insights for each route option such as working time or number of turns.

This “Plan From” feature was also useful when planning changes in run line angles – such as deep ripping on 15 degrees (Fig. 3).

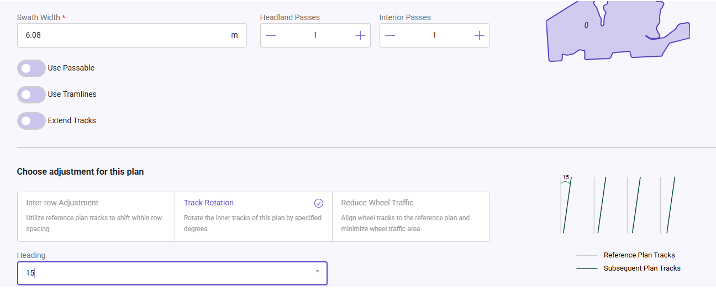

Fig. 3. Example of the “Plan From” feature being applied to a paddock’s seeding plan to design new deep-ripping paths 15 degrees from the standard CTF lines.

Edge alignment of new runlines

When designing paddock plans for the new paddocks with no existing runlines, Ben often selected the “edge alignment” option in order to follow the longest straight edge for most paddocks. This was done to create cohesion across paddock plans and reduce inefficiencies by sharing many of the same CTF lines across operations. Edge alignment consistently delivered the highest efficiency metrics and aided in standardising routes. This approach was done on a paddock-by-paddock basis for each new field.

Some paddocks had a “longest edge” identified by the program, though headland vegetation meant straight lines were not possible. In these instances, Launch Pad was able to identify a more efficient route, which often followed the next longest uninterrupted straight edge of the paddock (Fig. 4), or the route that involved the least number of tracks/turns.

Analysing seasonal plans

Ben found the “Analyze Path Plans” feature in Launch Pad to be useful in comparing efficiency metrics across various machinery widths. Ben was able to compare metrics within each paddock plan, as well as being able to visually see the overlaid routes across the seasonal plan and number of shared CTF tracks. This allowed the most efficient combinations and runline headings to be planned pre-season for all paddocks (Figs. 5-7).

Ben used a similar approach when identifying the most compatible and efficient runlines in paddocks where no pre-existing CTF lines were available. In some instances, Launch Pad identified the shortest or the fastest routes, which involved complex turns that were not compatible across all machinery widths. By comparing different machinery, headings and routes in the overlaid plan, the most consistent yet efficient route was able to be identified and fine-tuned.

Fig. 4. Path plan selected for “Roundabout” paddock using the longest uninterrupted paddock edge alignment at seeding (red) which also equated to the least number of tracks and the fastest time to complete.

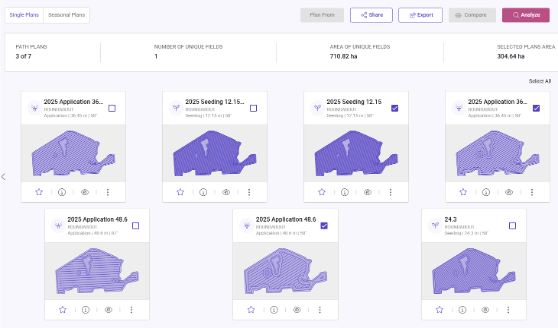

Fig. 5. “Roundabout” Paddock plans with relevant machinery across operations

Fig. 6. All operations and machinery types overlaid across the new paddock’s optimised runlines.

Results

Some of the improvements in efficiency, consistency, and machine operations from path planning included:

less time spent planning new paddock paths
ease of integration for new CTF lines
increased efficiency in machinery travel distance and time across activities
improved consistency across paddock paths, despite a range of equipment, staff, paddock types, guidance systems and operations.
rapid on-the-go changes to paddock plans increased efficiency and problem-solving abilities
machinery optimisation
optimised runlines
route standardisation using edge alignment methodology
reduced overlap

When looking at the same “Roundabout” case study paddock, new run lines were determined by evaluating the most efficient pathways and headings for operations that typically demand the greatest time investment, namely seeding and harvesting. By prioritising these time-consuming operations, the most efficient routes were selected. In this scenario, Launch Pad identified a heading of 57.9 degrees to be the most efficient option at seeding and harvest, with the least number of tracks and time required to complete operations. When comparing this to a standard 90-degree heading (Table 1), key efficiency metrics could be compared (Table 2).

Table 1. Comparison of key metrics for machinery allocated to Roundabout Paddock in 2025, applying a conventional 90o heading and an optimised 57.9o heading (chosen for minimum time to complete seeding). Data extracted from Verge Launch Pad paddock planner.

Quantifying overlap costs

Some benefits, such as greater planning ease, improved operational compatibility, and enhanced confidence in operations, can be considered intangible. However, certain efficiency gains, such as overlap costs, can be quantified.

To evaluate the monetary impact of reduced overlap in the optimised paddock plans compared to a plan using a conventional runline heading, average benchmark data from Albany Port Zone growers over the past five years was applied to key cost parameters including fuel and oil, fertiliser, chemicals, and wages (Table 2).
In this scenario, Strathaven Farms reduced seasonal overlap costs by approximately $6/ha (equating to nearly $600 over the one paddock) when comparing conventional and optimised runlines in one of the new paddocks (Fig. 8). When carried forward over multiple seasons, these savings demonstrate how incremental efficiency gains can compound into substantial improvements in overall operational profitability.

Table 2. Benchmark cost data derived from the Albany Port Zone (5- year average) allocated to case study paddock “Roundabout” and two scenario heading options that could have been used to create new CTF runlines. Efficiency metrics based on Table 1 data, and average benchmark data.

Fig. 8. Difference in overlap costs between 90o and 57.9o optimised headings.

Challenges

Some limitations encountered included

Absence of pre-saved heading templates required manual entry across paddocks
Each downloaded plan required manual extraction prior to USB transfer
Certain components of the route planning engine required refinement, particularly in turn planning logic.
These issues did not prevent implementation but represent opportunities for product refinement.

Next steps

Strathaven Farms will continue leveraging Launch Pad as they work toward autonomy and the standardisation of paddock plans and identifying the most compatible paddock routes.

With CTF runlines now established across all paddocks, Ben’s focus for next season is to apply newly updated Launch Pad features to operations, and continue to use Launch Pad to refine the existing plans.

Acknowledgments

Through the Grain Automate initiative, Grains Research and Development Corporation (GRDC) has partnered with Verge Ag and the Australian Controlled Traffic Farming Association to support the acceleration and adoption of machine automation, autonomy and digital technologies in the Australian grains industry. The research undertaken as part of this project is made possible by the significant contributions of growers through both trial cooperation and the support of the GRDC. The author would like to thank them for their continued support.

We extend our thanks to Strathaven Farms, Ben Slater, and owner Knud Nymann for generously sharing their time and insights that made this case study possible.

Project Code: VER2304-001RTX
